08-03-2021, 02:12 PM | #1 |
Senior Member
Join Date: Jun 2007
Location: Pine Ridge Florida
Posts: 4,126
|
I want a picture of
The blower motor connector on an AC vehicle. All the wires pulled out and I am not 100% sure even after looking at the wiring diagrams.
Also not sure I have the correct connector. The wire colors are blue, brown, yellow and orange. Trying to get the heat working. None of the vacuum lines hooked up, broken levers on the controller, and wiring issues. Thanks Mark
__________________
Click on my Not really a build thread, yet NOT SO RUST FREE RUST FREE BLAZER LS ENGINE SWAP INFORMATION THREAD BOLT RESTORATIONS 4l60 to an NP205 |
08-03-2021, 07:03 PM | #2 |
Registered User
Join Date: Dec 2020
Location: Joggins Nova Scotia
Posts: 1,598
|
Re: I want a picture of
hi,if you need a picture of the connector on the heater fan switch from an air conditioned truck,here's a couple pics from my 72 c20 with a/c.the flash blurred the colors but it's yellow on top,orange then brown on the bottom with a light blue on the inside row of terminals.hope that's a help.Greg
|
08-04-2021, 07:52 AM | #3 |
Senior Member
Join Date: Jun 2007
Location: Pine Ridge Florida
Posts: 4,126
|
Re: I want a picture of

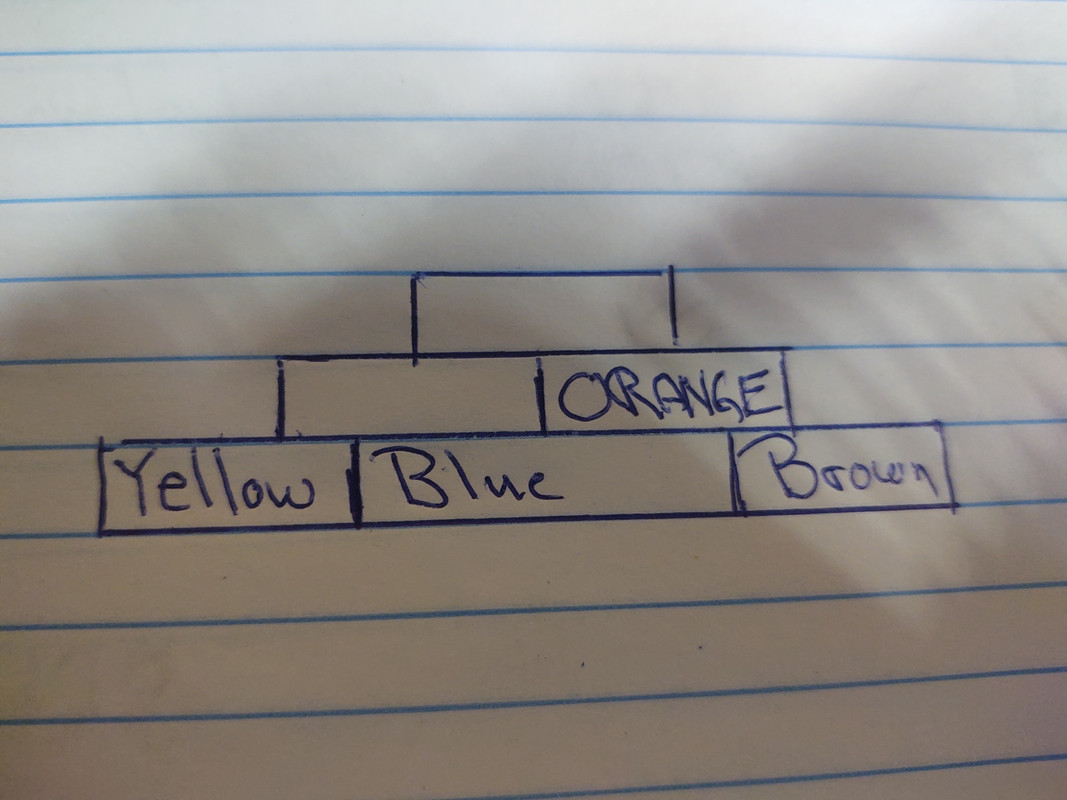

Could someone tell me the correct wire placement on this connector? I can't quite figure it out by the picture above. Correct my diagram below. This would be looking at the back of the connector.
__________________
Click on my Not really a build thread, yet NOT SO RUST FREE RUST FREE BLAZER LS ENGINE SWAP INFORMATION THREAD BOLT RESTORATIONS 4l60 to an NP205 |
08-04-2021, 07:58 AM | #4 |
Senior Member
Join Date: Jun 2007
Location: Pine Ridge Florida
Posts: 4,126
|
Re: I want a picture of
This is correct.
__________________
Click on my Not really a build thread, yet NOT SO RUST FREE RUST FREE BLAZER LS ENGINE SWAP INFORMATION THREAD BOLT RESTORATIONS 4l60 to an NP205 Last edited by Thealien; 08-04-2021 at 09:05 AM. |
08-04-2021, 08:46 AM | #5 |
Registered User
Join Date: Dec 2020
Location: Joggins Nova Scotia
Posts: 1,598
|
Re: I want a picture of
|
08-04-2021, 09:09 AM | #6 | |
Senior Member
Join Date: Jun 2007
Location: Pine Ridge Florida
Posts: 4,126
|
Re: I want a picture of
Quote:
Now I need to replace the controller, switch, and run new vacuum lines.
__________________
Click on my Not really a build thread, yet NOT SO RUST FREE RUST FREE BLAZER LS ENGINE SWAP INFORMATION THREAD BOLT RESTORATIONS 4l60 to an NP205 |
|
08-04-2021, 09:18 AM | #7 |
Registered User
Join Date: Dec 2020
Location: Joggins Nova Scotia
Posts: 1,598
|
Re: I want a picture of
Good news.need any other pics,just holler.Greg
|
